Place of Origin : Sichuan, China
Brand Name : BONENS
Model Number : RIG
MOQ : 1
Resistance : 10 ~ 500 ohms
Resistance Tolerance : ±5%, ±2%
Mounting Plating : Copper nickel plated
Housing Type : Aluminum Oxide
Operating Temperature : -55℃~ +125℃
Power Rating : 10W to 1000W
Frequency Range : 0~2GHz
Standing Wave Ratio : 1.2~1.3
Insulation Resistance : ≥ 1GΩ
Withstand Voltage : 500V/1 mm
Temperature Coefficient : ±300×10-6/°C
Temperature Shock : ΔR≤±5%R
Vibration Resistance : ΔR≤±3%R
Terminal Strength : 10N,5S
Solderability : 240℃,3s


























Electrical Characteristics: | ||||||
Range of nominal resistance | 1 ~500Ω | |||||
Resistance tolerance | ±5% | |||||
Frequency range | 0~2GHz | |||||
Standing wave ratio | 1.2~1.3 | |||||
Insulation resistance | ≥ 1GΩ | |||||
Withstand voltage | 500V/1 mm (Substrate thickness) | |||||
Environment Characteristics: | ||||||
Rated power | 1~1000W (70°C) | |||||
Temperature range | -55°C~+165°C | |||||
TCR | ±300×10-6/°C | |||||
Temperature shock (-55°C/+125°C, 3 times) | ΔR≤±5%R | |||||
Moisture proof (GJB306A-96-Method106) | ΔR≤±5%R | |||||
Vibration (10-500HZ, 0.75mm, 6h) | ΔR≤±3%R, No mechanical damage | |||||
Test at low temperature (-55°C, 24h) | ΔR≤±5%R | |||||
Load life (96) | ΔR≤±5% | |||||
Collision | ΔR≤±3%R | |||||
Physical Characteristics: | ||||||
Terminal strength(10N,5S) | No loose and fall off | |||||
Solderability(240℃,3s) | Tin layer covering area of 95% | |||||

|
|

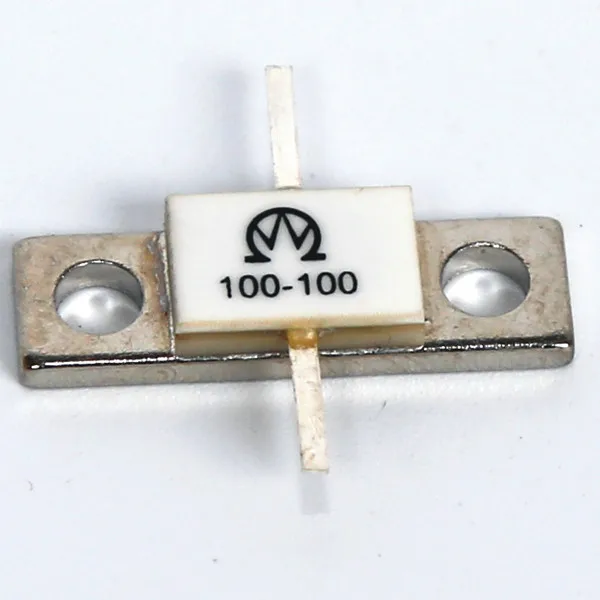

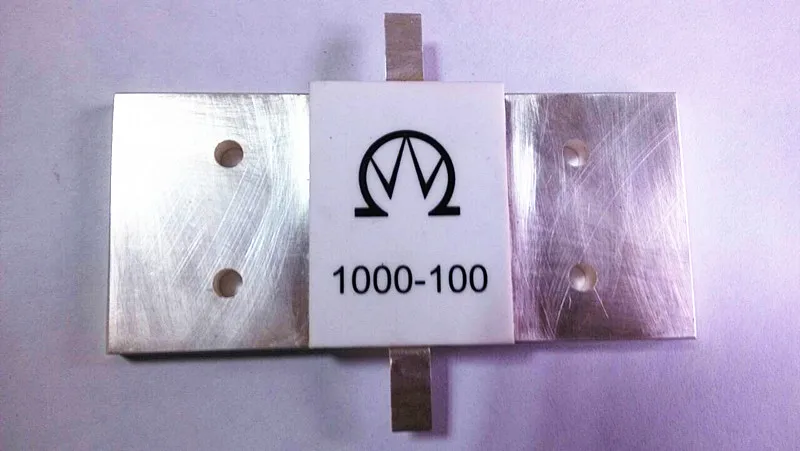

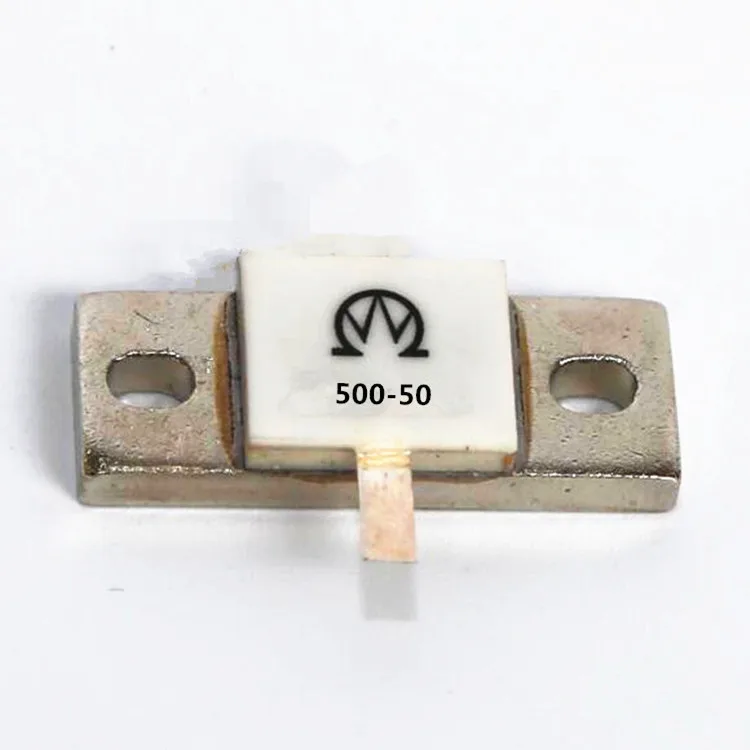

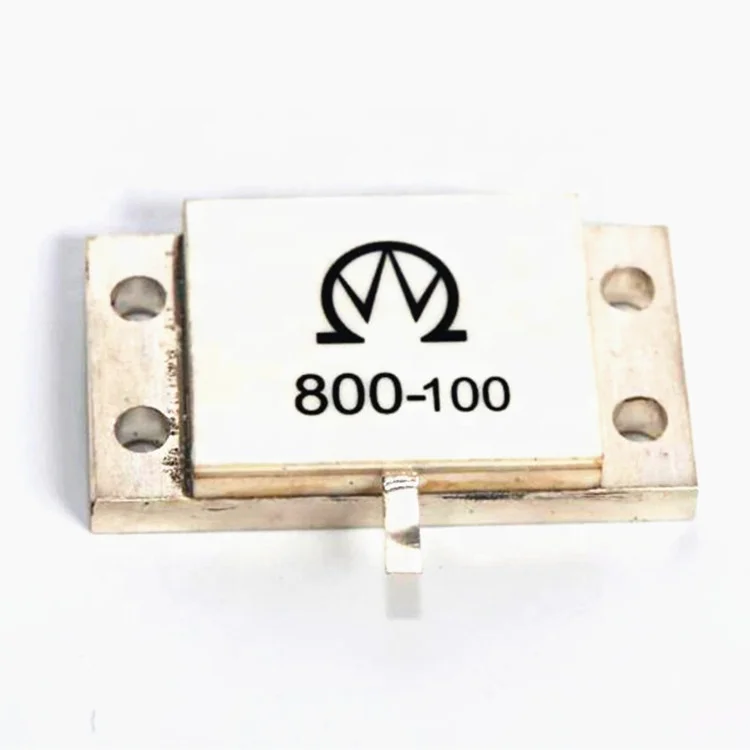

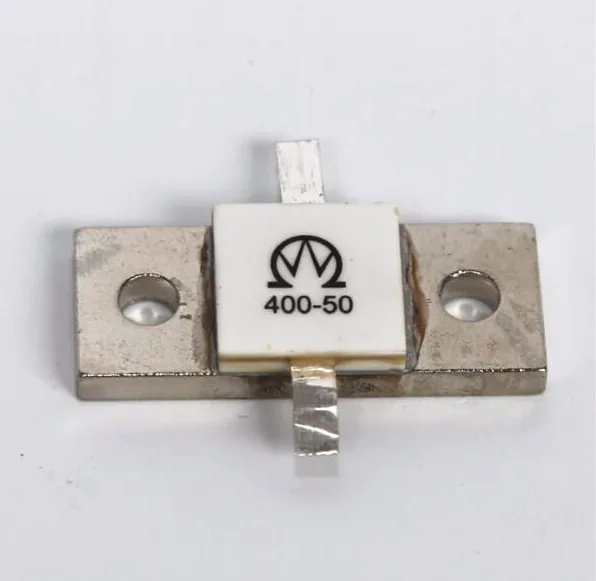

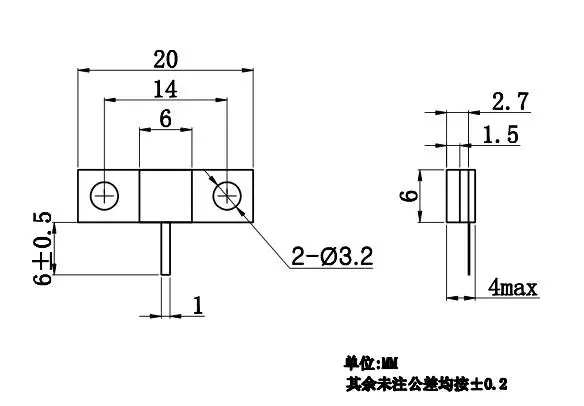

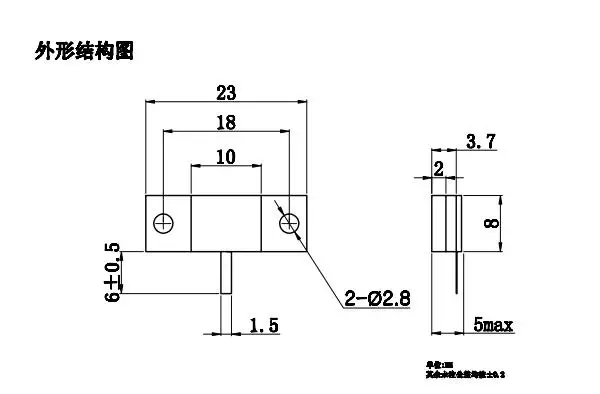

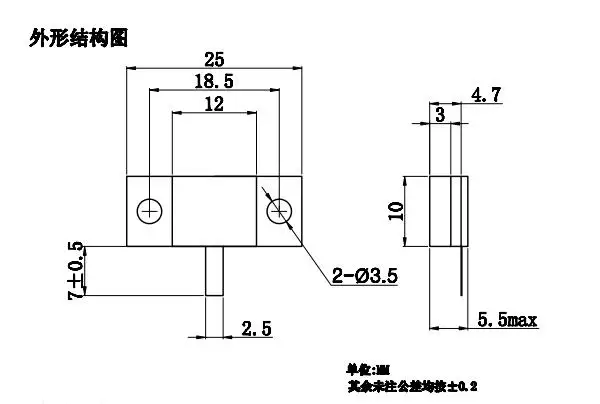

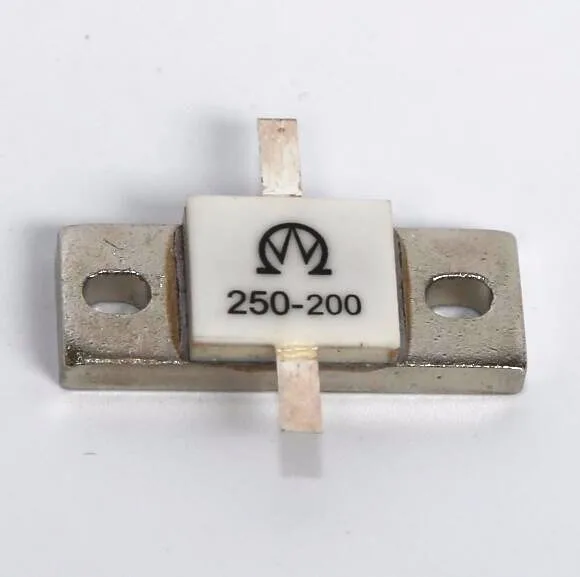

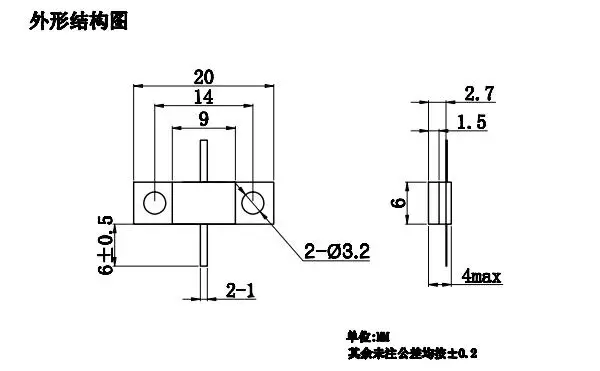

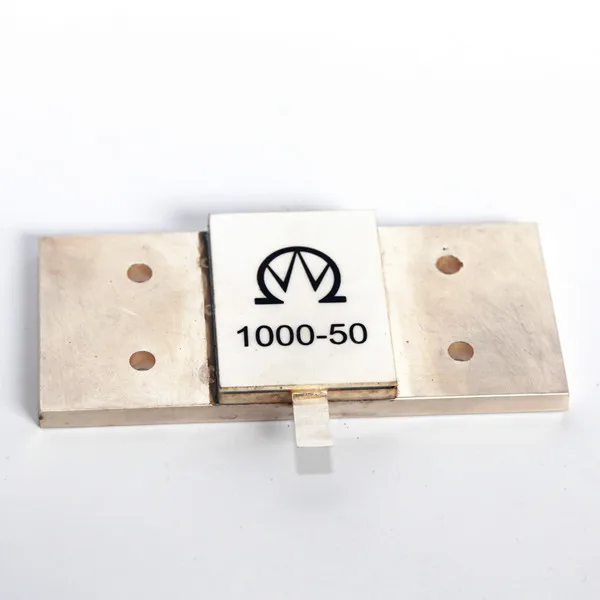

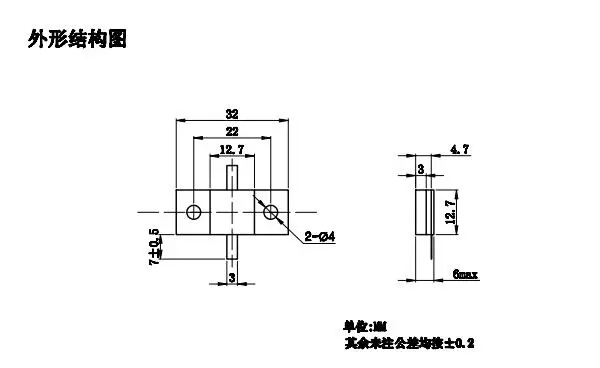

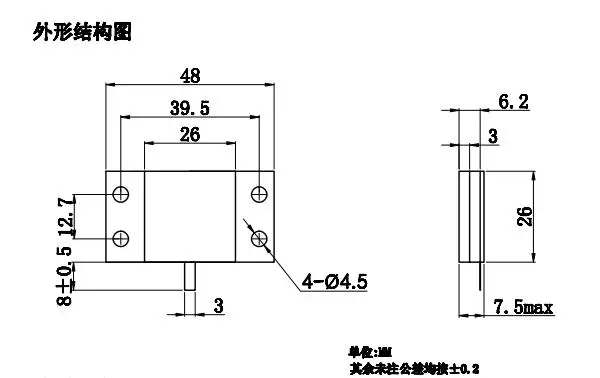

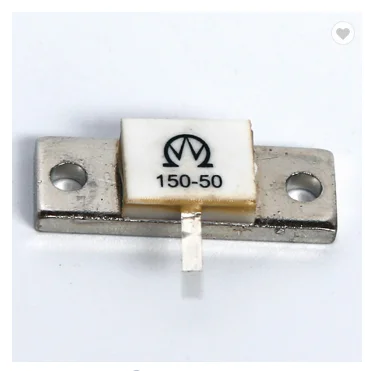

200Ohm Flange Mount Wirewound Resistor with Copper Nickel Plated Aluminum Housed for RF Applications Images |
